Loader Rim Assy
XGMA Loader Rim Assy
XG955 Loader Rim Assy Parts

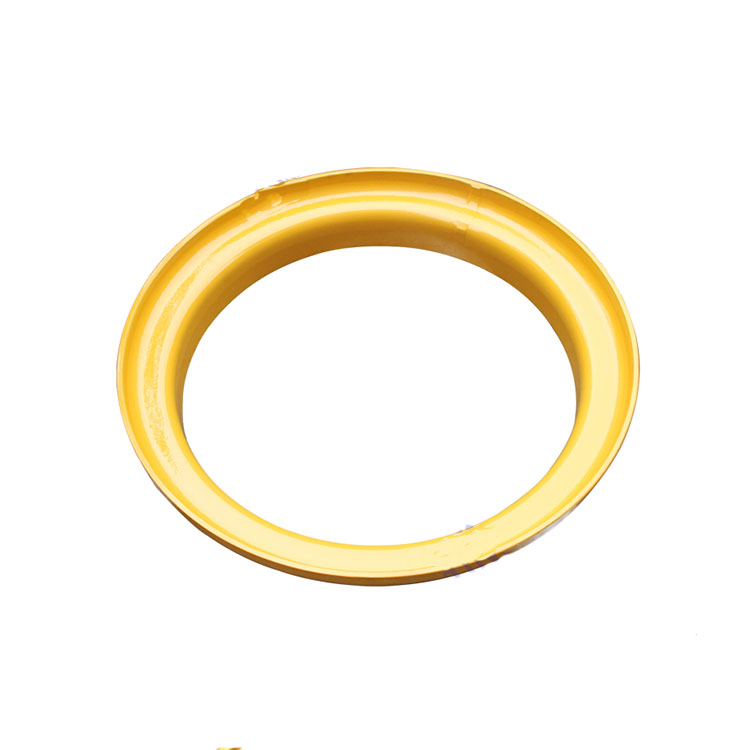

41D0002 57A0013 57A0012 XGMA Loader Rim Assy

The rim has the advantages of simple structure, high stiffness, and is the component of fixed tire installation.

Adaptors: XG951 XG953 XG955 series loaders

XGMA  41C0050  Loader rear propeller shaft

Product Specification
Part No. 41D0002 57A0013 57A0012 Part Name  XGMA Loader Rim assy
Related Part 504601 504606 404605 Application Wheel Loader
MOQ 1pcs Suitable Model XGMA,XCMG,SDLG,LONKING,LIUGONG,SANY etc
Color Yellow Loading Port Xiamen,China
Specification Standard Payment Term T/T,L/C,Ali Trade Assurance,Western Union,Paypal
Packing Plywood Pallet Delivery Time 15 Days after Confirm Order

Product Structure

NO. Part No. Part Name NO. Part No. Part Name
1 03B0071 nut 9 00B1448 bolt
2 01B1351 bolt 10 41C0049 drive shaft assem
3 03B1098 nut 11 41C0078 axle
4 41C0079 axle 12 14D0002 rim body
5 03B1099 nut 13 20B0002 tire
6 00B1183 bolt 14 57A0013 snap ring
7 41C0050 drive shaft assem 15 57A0012 snap ring
8 56A0018 washer
