XGMA Loader 55C0354 55C0355 Booster Pump Wholesale

The booster pump is used for Xiagong wheel loader XG951H. The booster pump is divided into front and rear axle brake power. The front axle booster pump part number is 55C0354, and the rear axle booster pump part number is 55C0355,

Brake caliper (caliper disc brake) has the characteristics of strong heat dissipation, good thermal stability, stable braking performance and so on. It is the main braking device of construction machinery terminal braking. Performance characteristics: 1. Piston diameter: φ75mm 2. Oil inlet hole: M12*1.25 3. Radius of brake disc: R250mm Product size: 40.2*19.2 Adaptation: (1) XGMA XG951H953H955H956H958H962H Loader (2) TOTA XZ656-1 656-2 656-3  Loader (3) Longking LG850DLG853DZL50CDZL50EXZL50CLG855DLG855LG855NLG853LG850LG855BLG856LG856BLG860LG862 loader

The inner gear ring (internal meshing gear) and the ring gear bracket constitute the internal gear, which is an important part of the drive axle. Performance characteristics: number of teeth 52 Adaptation: 30-machine drive axle XG932 XG935 loader

Product introduction: The air brake master valve (single chamber) is an important control device in vehicle service braking, which has the function of realizing sensitive follow-up control in the braking process and release process of the braking system. technical parameter Working pressure: 784kPa Working temperature: - 30~+80 ℃ Air port: 3-M22 * 1.5 Adaptation: loader and all mechanical equipment using pneumatic braking system (common parts).

Oil-water separator combination valve has the function of separating the oil and water in the intake air and regulating the air pressure (overpressure unloading). It is the main component device to ensure the reliable work of the brake system components. Technical parameters: Opening pressure :804±20kPa Closing pressure :685-750kPa Operating temperature -40~+100℃ Adaptation: loaders with pneumatic control system and corresponding mechanical equipment of this type

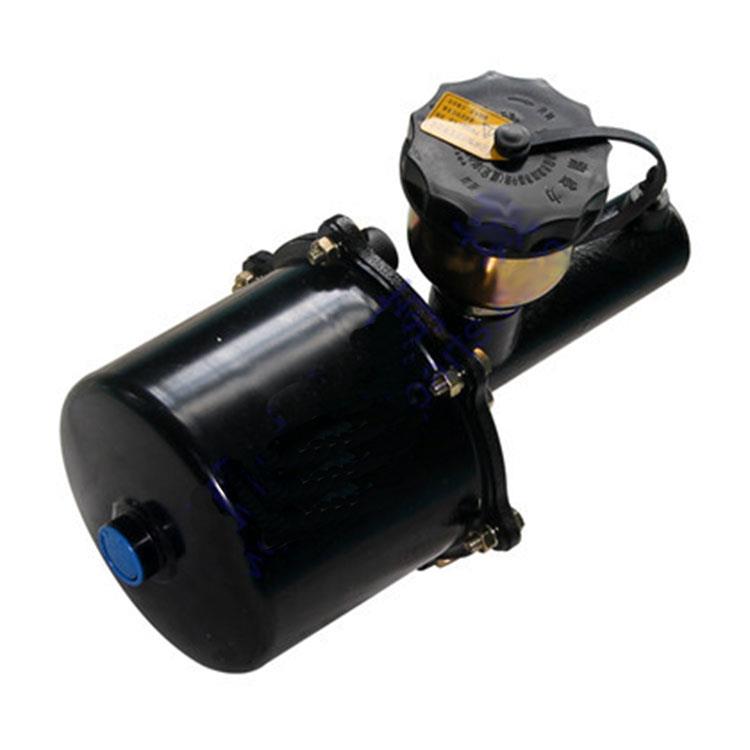

Product Description:   The front air booster pump has the function of pressurization and booster with compressed air. It is an important device for hydraulic braking of loader. Technical parameter Rated working pressure: 784kPa Supercharging ratio: 1:18 *90% Hydraulic displacement: 40ml Air intake: M22*1.5 Oil outlet: M12*1.25 Adaptation: XGMA XG932 series loader braking system and corresponding construction machinery equipment of this specification model Note: The specific color is based on real objects

Air pressure source manager has the functions of regulating air pressure (overpressure unloading), compressed air filtration, cooling and removing oil and water impurities, which is the main part to ensure the reliable work of brake system components. Technical parameters: The working pressure is 0.8MPa Operating temperature -40 ~ +80℃ Opening pressure 0.8±0.02MPa interface thread: 2-M22*1.5 Adaptation: Loaders and all construction machinery using pneumatic control system (general).

Product Description:   Unloading valve has the function of regulating air pressure (overpressure unloading) and so on. It is the main part to ensure the reliable operation of brake system components. Technical parameters: Working pressure: 0.8MPa Operating temperature: -40~+80℃ Opening pressure (unloading pressure) : 0.8±0.02MPa Air port: 2-M22*1.5 Installation dimension mm: 2-∮9-70 Technical parameters: Adaptation: Xiamen XZ series loaders and all pneumatic control system engineering machinery using this specification model
